CIRCLY 7.0 – Calculate any component of displacement, strain or stress

CIRCLY can calculate and generate graphs of any component of displacement, strain or stress in two-dimensional or three-dimensional form.

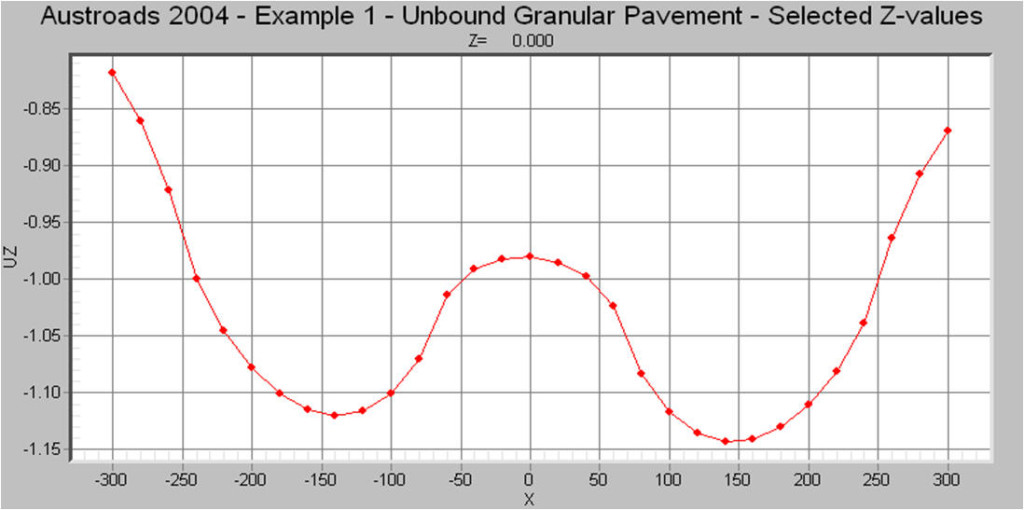

2D graph of any component of displacement, strain or stress

for example, surface displacements:

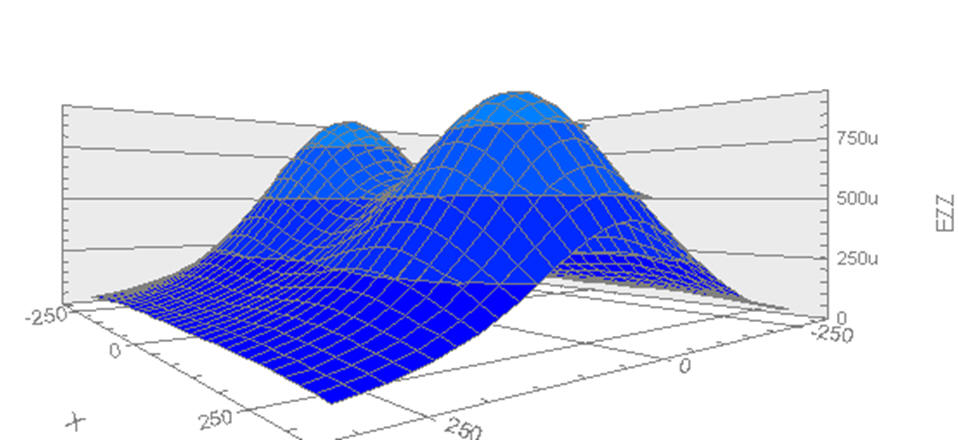

3D graph of any component of displacement, strain or stress

 for example, strain pulse under dual wheels:
