CIRCLY 7.0 – Alternative Graph Formats
CIRCLY generates graphs that show the variation of the damage factor across the pavement.
CIRCLY can also generate graphs of any component of displacement, strain or stress in two-dimensional or three-dimensional form.

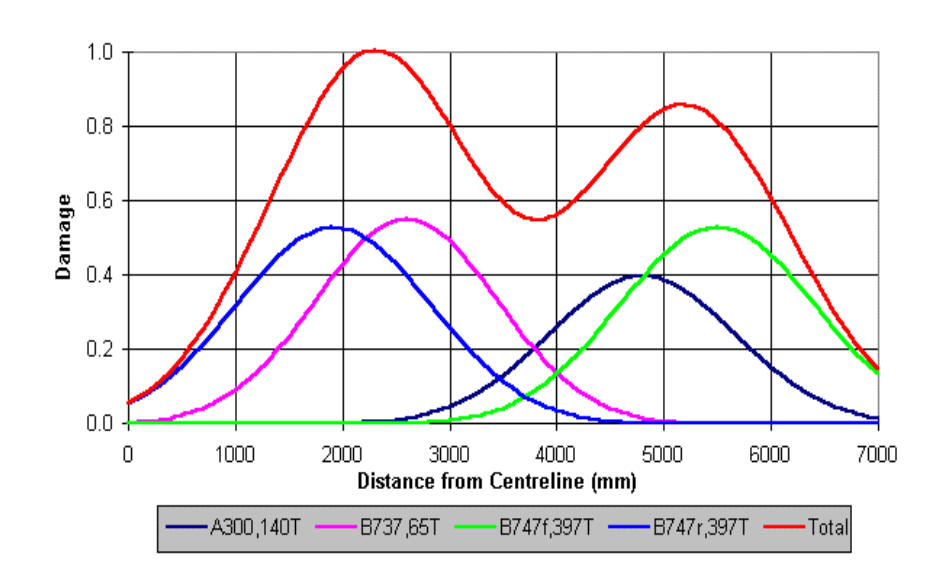

Damage (CDF) plot
2D graph of any component of displacement, strain or stress

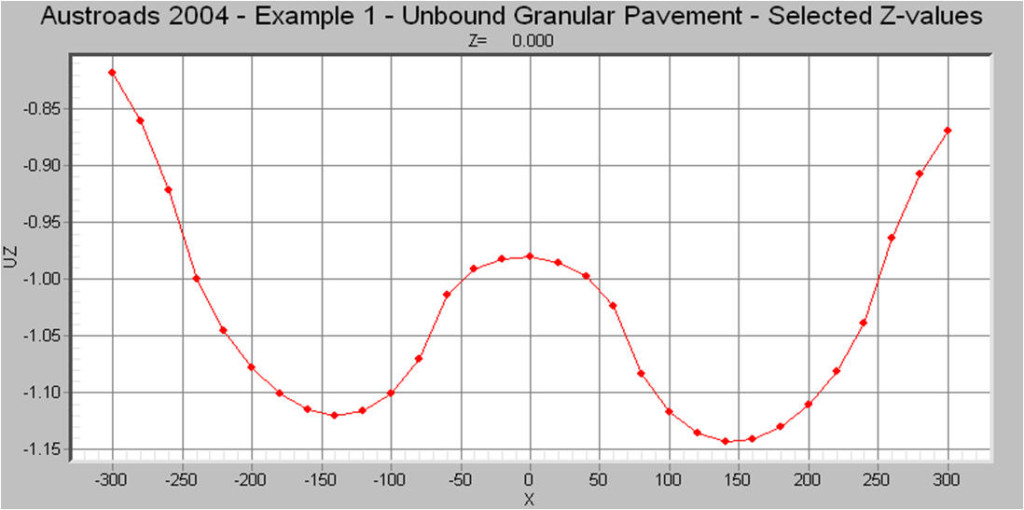

for example, surface displacements:

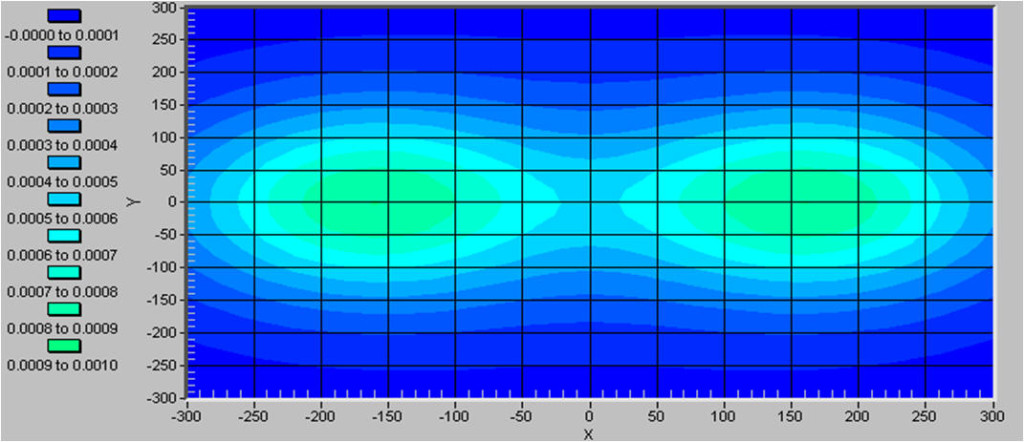

3D graph of any component of displacement, strain or stress

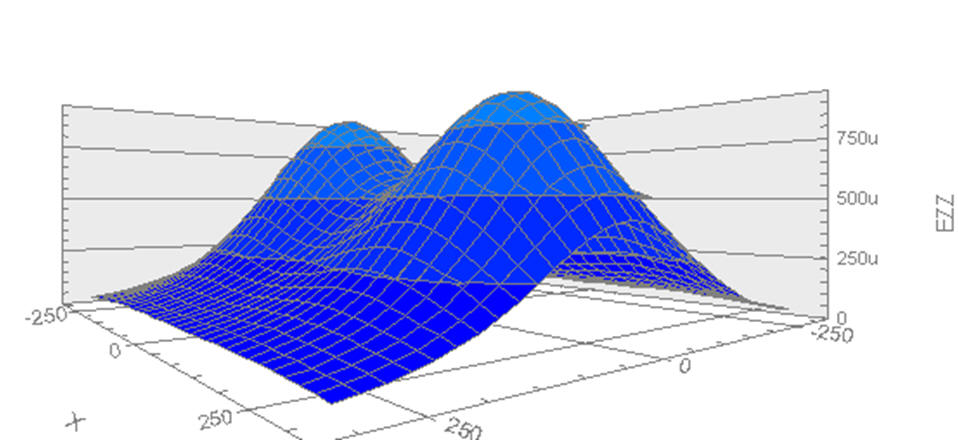

for example, strain pulse under dual wheels:
Cost Optimization graphs

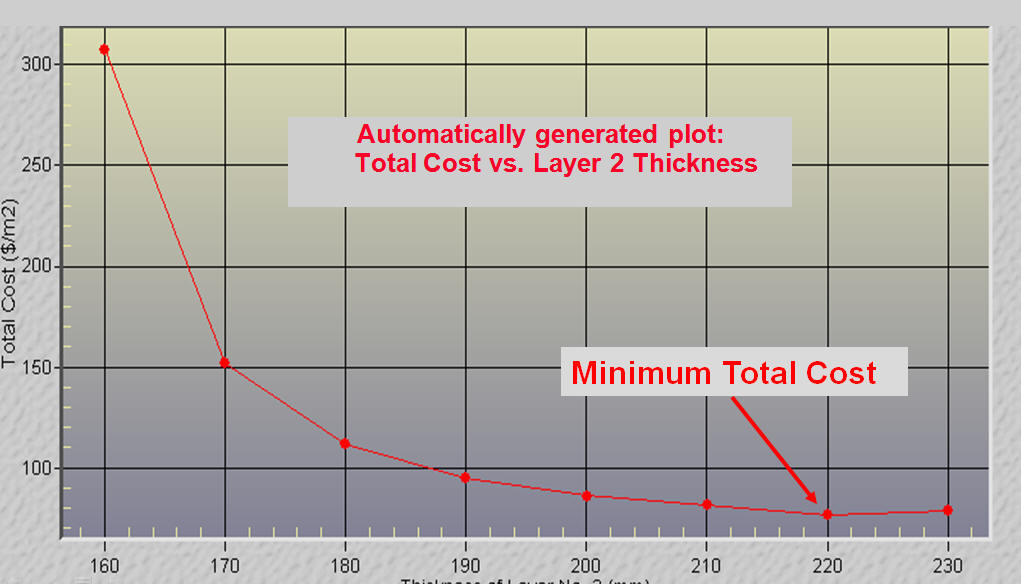

Automatically generated plot: Total Cost vs. Layer 2 Thickness.
